WATstop
WATstop is a three-component epoxy-cement coating that waterproofs from either side of the structure. It holds back 9.5 atm of water pressure in direct thrust or counter-thrust, so it works...

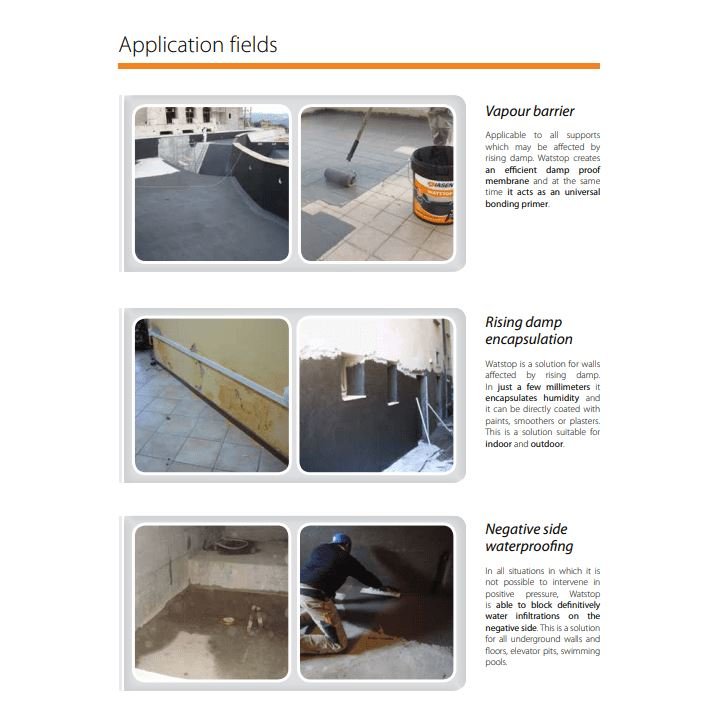

WATstop is a three-component epoxy-cement coating that waterproofs from either side of the structure. It holds back 9.5 atm of water pressure in direct thrust or counter-thrust, so it works where water pushes from below slabs or behind walls in basements, cellars, tanks and pits. On concrete floors it lays down as a vapour barrier at 1.0 kg/m²; in dehumidification build-ups it primes the wall for Diathonite Deumix+. In the microcement system it is the waterproofing layer under Decorkrete in showers and wet areas. Applied by trowel or roller; stocked in white.
Key Features
- Bonds at 2.5 N/mm² even on glazed ceramic tile
- 2-hour pot life at 23°C
- Overcoat window 24 to 48 hours
- Doubles as a primer on smooth surfaces at 0.3 kg/m²
$7.69/ft² material cost (covers ~27 ft² at 2 coats)
Size
Color
Technical Details
Specifications
Technical Performance
Product specifications
Technical Documents
9 documents
Certifications
5 certifications
Key Features
Product highlights
Application

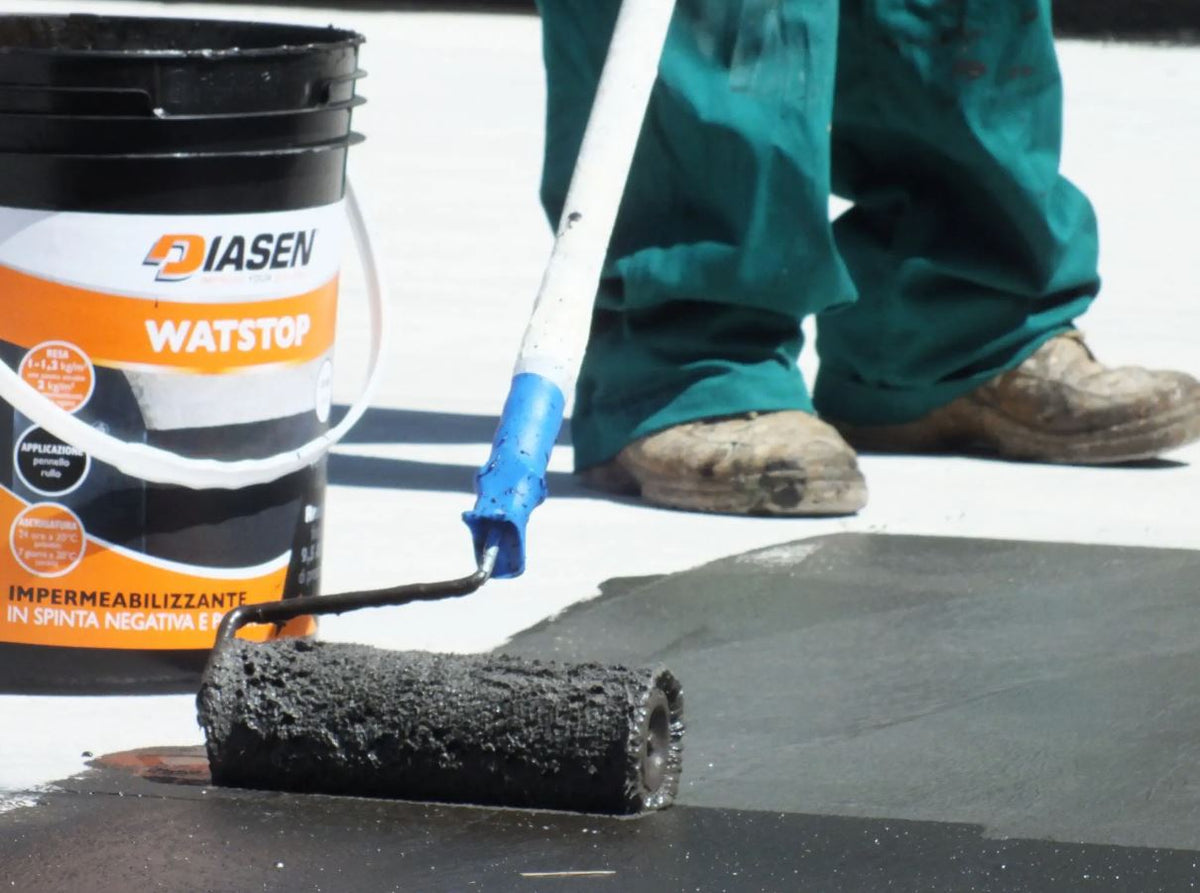

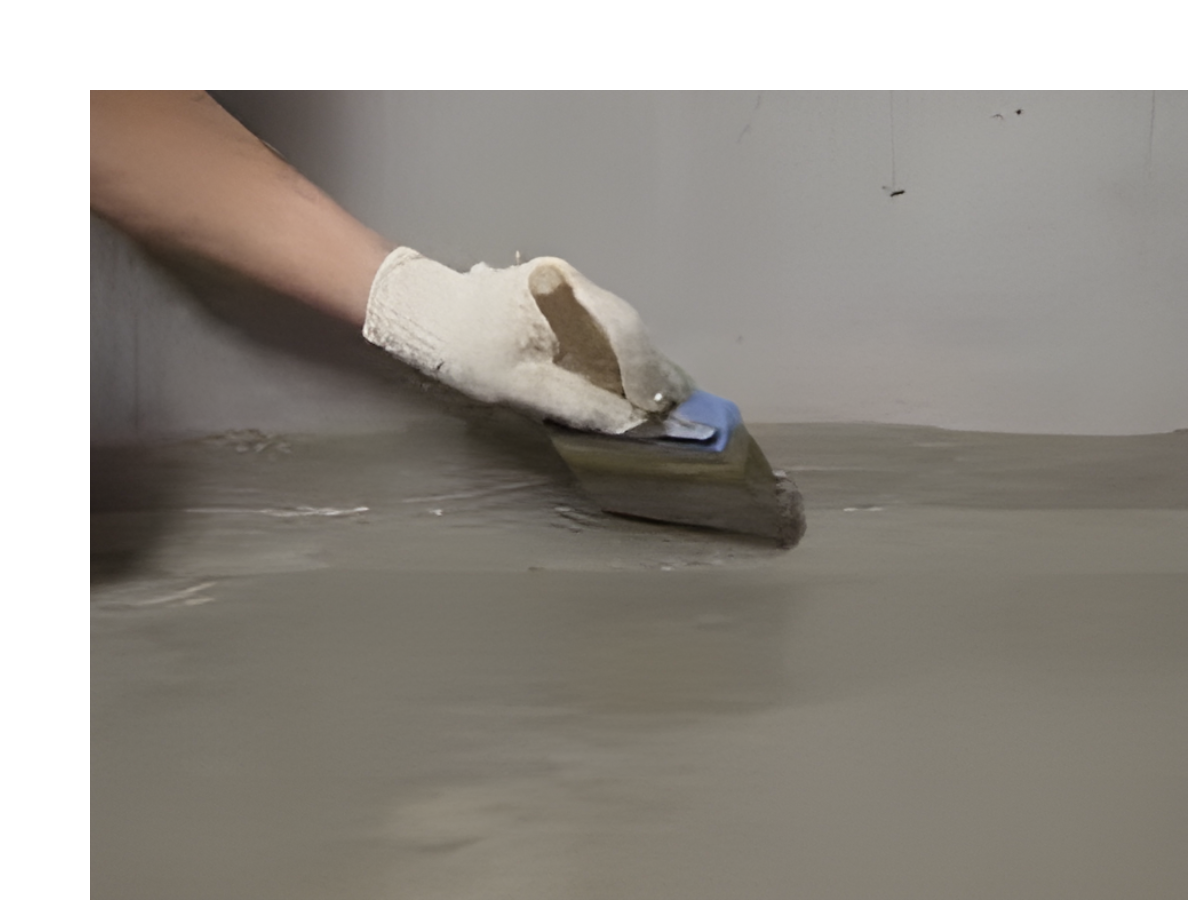

How to apply
Coverage & Yield
Application rates
FAQs
Common questions
Product Brochure
Download PDF
Technical Performance
| Format | Paste |
|---|---|
| Components | Three-component (A+B+C) |
| Waterproofing in positive pressure | 9.5 ATM - 132.3 psi |
| Waterproofing in negative pressure | 9.5 ATM |
| Adhesion to concrete substrate | 2.5 N/mm2 - 362.59 lbf/in2 (good) |
| Adhesion to expanded polyurethane panel | 1.25 N/mm2 (good) |
| Adhesion to expanded polystyrene | 1.5 N/mm2. |
| Adhesion to glazed ceramic tile | 2.5 N/mm2 - 362.59 lbf/in2 (good) |
| Adhesion of WATstop + Acriflex on polyurethane foam | 1.83 N/mm2 - 265.42 lbf/in2 (good) |
| Pot Life | 2 hours with 23°C/73.4°F and 50% of relative humidity (high temperatures decrease workability time) |
| Dry time | 24 hours |
| Package | Plastic Bucket |
| Weight | 5 k (11 lbs) or 10 kg (22 (lbs) |
Technical Documents
-
WATstop Technical Data Sheet
Download -
Watstop Technical Specification
Download -
Watstop Declaration of Performance EN 1504 2 CE
Download -
Watstop Declaration of Performance EN BS 1504 2 UKCA
Download -
Watstop Safety Data Sheet A
Download -
Watstop Safety Data Sheet B
Download -
Watstop Safety Data Sheet C
Download -
Watstop Leed and Well Credits Chart
Download -
EPD Documentation Waterproofing
Download
Key Features
Application
Coverage & Yield
Coverage: 1.0 kg/m² per coat × 2 coats recommended
| Package | Covers | Price | Cost per ft² |
|---|---|---|---|
| 5 kg (2.5-5 m²) / White | ~27 ft² (2.5 m²) | $206.99 | $7.69/ft² |
| 10 kg (5-10 m²) / White | ~54 ft² (5.0 m²) | $319.99 | $5.95/ft² |
Figures are estimates for planning — actual coverage varies with substrate texture, application method, and technique.
