Diathonite Evolution ^Sale

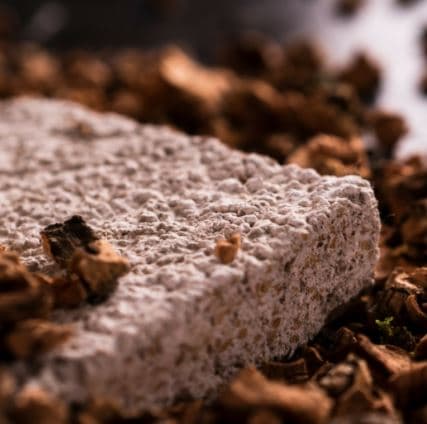

Diathonite Evolution is a natural thermal insulating plaster made from cork, clay, and lime. Ideal for interior and exterior use, it offers superior insulation, soundproofing, and fire resistance.

From $161.20 CAD

Diathonite Evolution is an advanced, eco-friendly thermal insulating plaster designed for both interior and exterior applications. Made from natural materials like cork, clay, and natural hydraulic lime, this breathable plaster offers superior insulation, soundproofing, and fire resistance. Diathonite Evolution is perfect for increasing energy efficiency and improving the comfort of buildings. Its high-performance properties help regulate indoor temperature, reduce energy costs, and create a healthier living environment by preventing mold and condensation. Whether you’re renovating or constructing new buildings, Diathonite Evolution provides a durable, sustainable solution that contributes to long-term thermal efficiency.

For purchase inquiries, please submit our Contact form.

Key Features

Eco-Friendly: Made from natural, sustainable materials including cork, clay, and lime.
Thermal Insulation: High thermal resistance for superior energy efficiency.
Soundproofing: Provides excellent sound absorption for improved indoor acoustics.
Fire Resistance: Non-combustible and highly fire-resistant for increased safety.
Breathable: Prevents mold and condensation by allowing moisture to escape.
Durable: Long-lasting, suitable for both interior and exterior applications.
Sustainable: Low environmental impact and fully recyclable.

Technical Performance

Format: Powder
Grain Size: 0 – 3 mm (0 - 0.12 in)
Application Temperature: +5 / +30 °C (+41 / +95 °F)
Workability Time (UNI EN 1015-9 – method B): 40 min
Thermal conductivity (λ): 0.045 W/mK (UNI EN 1745, category T1)
Thermal Resistance (R): 0.222 m² K/W for 1 cm (0.4 in) thickness (UNI 10355)
Specific Heat Capacity (c): 1000 J/kgK (0.239 kcal/kg °C) (UNI EN 1745, UNI EN 10456)
Thermal Diffusivity (a): 0.125 x 10⁻⁶ m²/s (UNI TS 11300-1)
Fire reaction: Class A1 (UNI EN 13501-1)
Compressive Strength: 2.95 N/mm² (427.9 lbf/in² (psi)) EN 998-1 category CSII
- EN 998-2 M 2.5
Flexural Strength: 1.5 N/mm² (217.6 lbf/in² ) - UNI EN 1015-11
Vapour Permeability Coefficient (µ): µ = 4 (UNI EN 1015-19) (WVT = 14 grains/h·ft² (ASTM E96) – Highly breathable
Water Absorption by Capillarity: 0.40 kg/m² min⁰.⁵ (UNI EN 1015-18, category W1)
Water Penetration Depth (after 90 minutes): 40 mm (1.57 in) (UNI EN 1015-18)
Minimum Thickness for Application: 0.5 cm (0.6 inches)
Maximum Thickness per Layer: 4 cm (1.6 inches)
Maximum Thickness per Layer for ceilings: 2 cm (0.8 inches)
Maximum Thickness for Ceiling Applications: 4 cm (1.6 inches)
Dried Mortar Porosity: Total: 71.64%; Macroporosity: 17.83%; Microporosity: 54.94%
Adhesion onto the Support (Brick): 0.10 MPa (14.5 lbf/in²) (UNI EN 1015-12, break type B)
Adhesion on Tuff: 0.201 MPa (29.15 lbf/in²) (UNI EN 1015-12)
Adhesion on Wood Fibre Panels: Good (UNI EN 1015-12)
Marble Adhesion onto Diathonite Evolution: 0.241 MPa (34.95 lbf/in²) (UNI EN 1015-12)
Stone Adhesion onto Diathonite Evolution: 0.241 MPa ((34.95 lbf/in²) UNI EN 1015-12)
Tensile Secant Modulus: 742 N/mm² (UNI 6556) – Highly elastic
Yield:: 3.70 (±10%) kg/m² per cm of thickness (1.92 (±10%) lb/ft² per inch of thickness)
Density: 360 ± 20 kg/m³ (22.5 ± 1.25 lb/ft³)
Drying time: 10-15 days
Package: Paper Bag
Weight: 18 kg (39.68 lb)

Application

Trowel

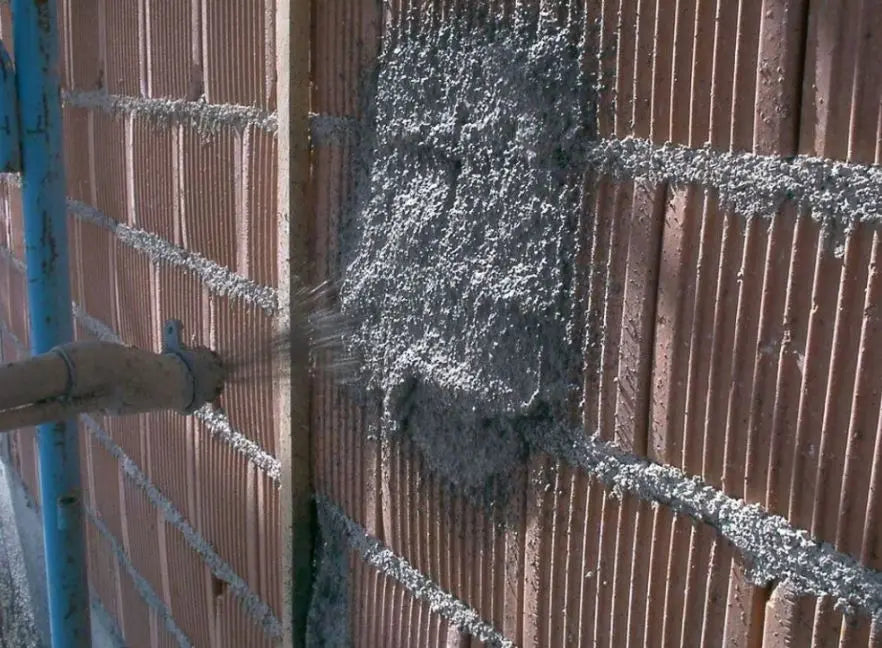

Plastering Machine

Product Yield

Package: 18 kg (33.7 lbs)

Coverage (±20%): 3.7 kg/m² (0.76 lbs/ft²) per cm of thickness.

Per Package: 4.86 m² (52.2 ft²)

Certifications
