Diathonite Sismactive
Diathonite Sismactive – Reinforced Structural Mortar Diathonite Sismactive is an M10 thermal and structural lime-based mortar designed for seismic reinforcement and thermal insulation of masonry buildings. This eco-friendly plaster is...

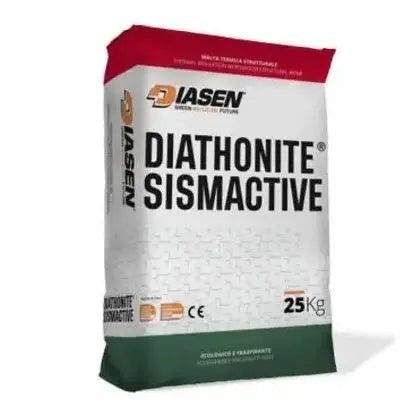

Diathonite Sismactive – Reinforced Structural Mortar

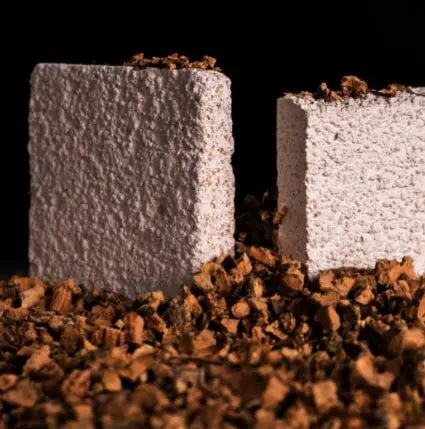

Diathonite Sismactive is an M10 thermal and structural lime-based mortar designed for seismic reinforcement and thermal insulation of masonry buildings. This eco-friendly plaster is composed of cork, clay, diatomaceous powders, and a hydraulic binder, making it ideal for use in CRM (Composite Reinforced Mortar) systems. With excellent compressive strength and low thermal conductivity, Diathonite Sismactive provides effective structural consolidation and improves the energy efficiency of historical and modern buildings. It is perfect for structural reinforcement, fire resistance, and improving the longevity of both internal and external walls.
25 kg
Size
Technical Details
Specifications
Technical Performance
Product specifications
Technical Documents
9 documents
Certifications
9 certifications
Key Features
Product highlights
Application
How to apply
Coverage & Yield
Application rates
FAQs
Common questions
Product Brochure
Download PDF
Technical Performance
| Yield (±10%) | 6.00 kg/m² per 10 mm of thickness (3.12 lb/ft² per inch of thickness) |
|---|---|
| Aspect | Powder |
| Colour | Light grey |
| Density | 600 ± 10% kg/m³ (37.46 ± 0.62% lb/ft³) |
| Grain Size | 0 – 3 mm (0 - 0.12 in) |
| Minimum Thickness for Application | 15 mm (0.6 inches) |
| Application Thickness for CRM Systems | 30 - 50 mm (1.18 – 1.96 inches) |
| Application Temperature | +5 / +30 °C (+41 / +95 °F) |
| Workability Time (UNI EN 1015-9 – method B) | 40 min |
| Drying Time (T=23°C; U.R. 50%) | 10-15 days |
| Compressive Strength | 10.1 N/mm² (EN 998-1, category CS IV) (1464.88 lbf/in²) (EN 998-2 M10) |
| Flexural Strength | 2.3 N/mm² (UNI EN 1015-11) (333.59 lbf/in²) |
| Thermal Conductivity (λ) | 0.065 W/mK (UNI EN 12664) |
| Specific Heat Capacity (c) | 1000 J/kgK/ 0.239 kcal/kg°C (UNI EN 1745, UNI EN 10456) |
| *Hardened Material Weigh | 800 ± 10% kg/m³ (49.94 ± 0.62% lb/ft³) |
| Storage | 12 months |
| Packaging | Paper Bag |
| Weight | 25 kg (55.11 lb) |
Technical Documents
-
Diathonite Sismactive Technical data sheet
Download -
Diathonite Sismactive Technical specification
Download -
Diathonite Sismactive Safety data sheet
Download -
Diathonite Sismactive Declaration of performance EN 998 1 CE
Download -
Diathonite Sismactive Declaration of performance BS 998 1 UKCA
Download -
Diathonite Sismactive Declaration of performance EN 998 2 CE
Download -
Diathonite Sismactive Declaration of performance BS 998 2 UKCA
Download -
Diathonite Sismactive LEED WELL
Download -
EPD Documentation Diathonite
Download
Key Features
Application
Coverage & Yield
Frequently Asked Questions
Product Brochure
-
Diathonite Sismactive Brochure
Download
